General

3.1 General

SIDRA ASSIGN uses three tabs in the SIDRA INTERSECTION user interface:

• Assign -- Assign Setup Tab is for creating, modifying, reviewing and processing Assign Networks.

• Assign - Assign Output Tab is for viewing performance metrics of processed Assign Networks.

• Volume Store -- Assign Volume Bins Tab is for creating, modifying and reviewing Assign Volume Bins.

The Project Pane of the Assign -- Assign Setup Tab and the Assign - Assign Output Tab includes the Network Section where Assign Networks in the Project File can be selected and managed. The Network Section also includes Basic Networks. The Network Input Section includes Assign Data and Assign Scenarios input dialogs. Sites/CCG in Network or Sites/CCG on Route Section is where Sites/CCG can be selected for viewing outputs. Figure 3.1.1 and Figure 3.1.2 show the user interfaces of the Assign-Assign Setup Tab and Assign - Assign Output Tab, respectively.

The Project Pane of the Volume Store -- Assign Volume Bin Tab includes the Assign Volume Bins Section where Assign Volume Bins in the Project File can be selected and managed. The Assign Bin Input Section is where Input Dialogs can be accessed. Figure 3.1.3 shows the user interface of the Volume Store-Assign Volume Bin Tab.

---

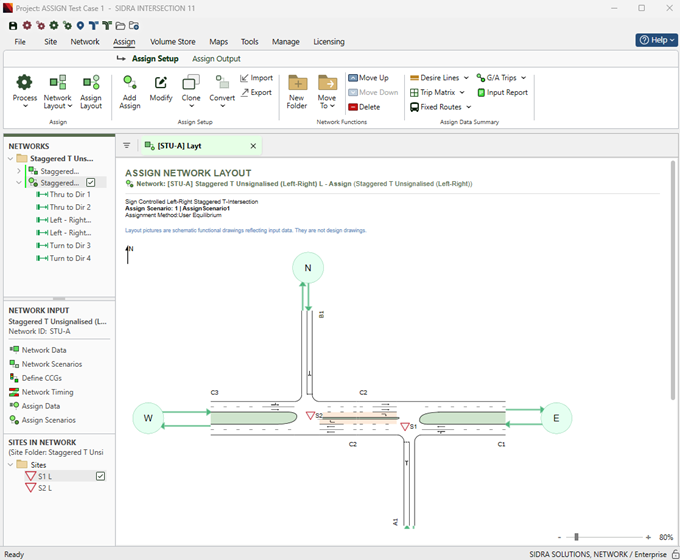

Figure 3.1.1 — ASSIGN User Interface for Assign-Assign Setup Tab

Figure 3.1.1 — ASSIGN User Interface for Assign-Assign Setup Tab

---

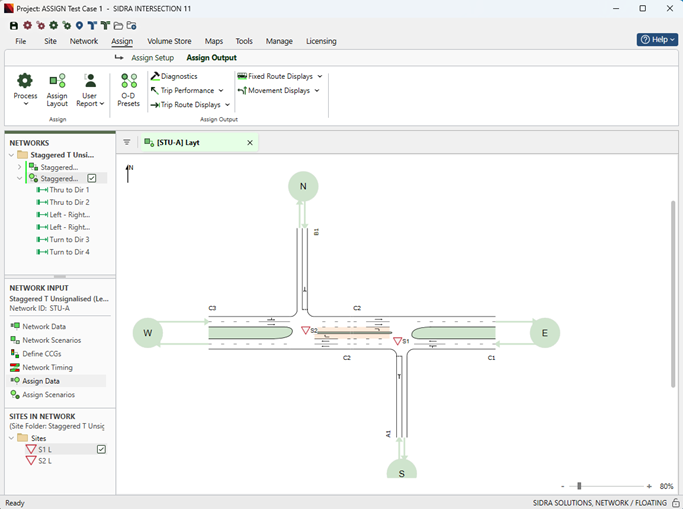

Figure 3.1.2 — ASSIGN User Interface for Assign-Assign Output Tab

Figure 3.1.2 — ASSIGN User Interface for Assign-Assign Output Tab

---

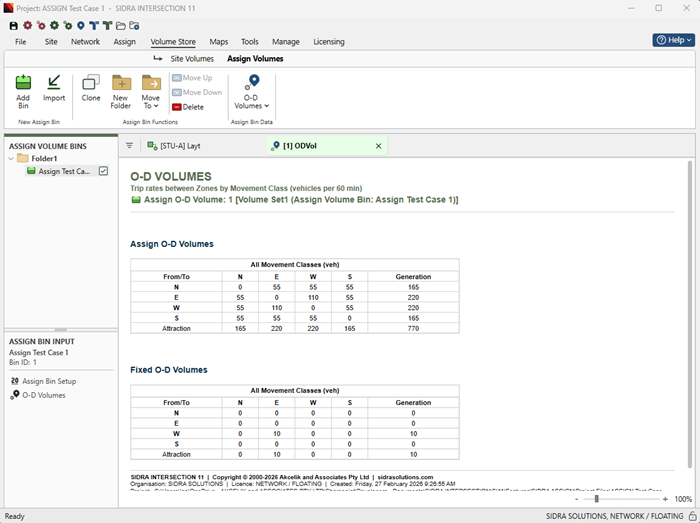

Figure 3.1.3 — ASSIGN User Interface for Volume Store-Assign Volume Bin Tab

Figure 3.1.3 — ASSIGN User Interface for Volume Store-Assign Volume Bin Tab

---
